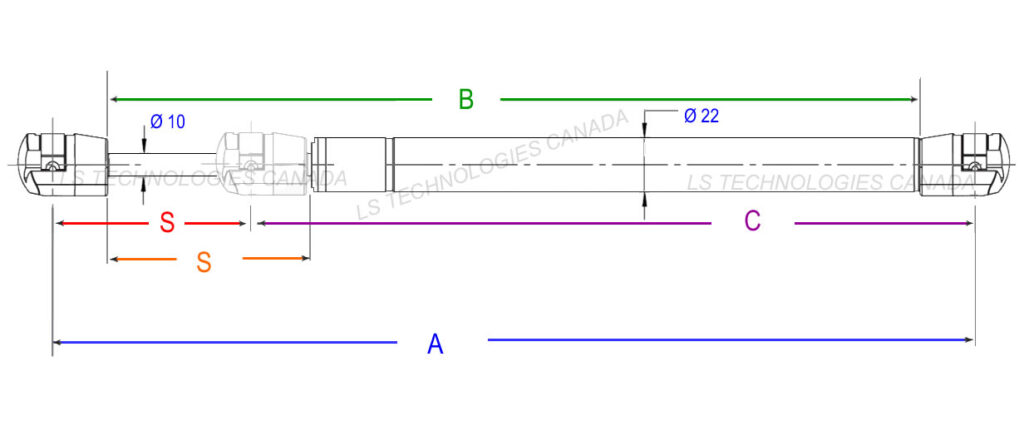

10/22 SERIES	Extended Length [A]		Stroke [S]		Compressed Length [C]		Extended Shoulder Length – No End Fittings [B]
STOCK No.	mm	Inches	mm	Inches	mm	Inches	mm	inches
GSK22-182	182	7.2	52	2	130	5.1	142	5.6
GSK22-190	190	7.5	58	2.3	132	5.2	150	5.9
GSK22-240	240	9.4	85	3.3	155	6.3	200	7.9
GSK22-275	275	10.8	100	3.9	175	6.9	235	9.3
GSK22-305	305	12	115	4.5	190	7.5	265	10.4
GSK22-312	312	12.3	100	3.9	212	8.3	272	10.7
GSK22-315	315	12.4	120	4.7	195	7.7	275	10.8
GSK22-336	336	13.2	130	5.1	206	8.1	296	11.7
GSK22-344	344	13.5	118	4.6	226	8.9	304	12
GSK22-350	350	13.8	137	5.4	213	8.4	310	12.2
GSK22-375	375	14.8	150	5.9	225	8.9	335	13.2
GSK22-390	390	15.4	155	6.1	235	9.3	350	13.8
GSK22-395	395	15.6	159	6.3	236	9.3	355	14
GSK22-405	405	15.9	165	6.5	240	9.4	365	14.4
GSK22-422	422	16.6	160	6.3	262	10.3	382	15
GSK22-424 M6	424	16.7	164	6.5	260	10.2	384	15.1
GSK22-430	430	16.9	177	7	253	10	390	15.4
GSK22-437	437	17.2	155	6.1	282	11.1	397	15.6
GSK22-450	450	17.7	187	7.4	263	10.4	410	16.1
GSK22-460	460	18.1	190	7.5	270	10.6	420	16.5
GSK22-470	470	18.5	197	7.8	273	10.7	430	16.9
GSK22-485	485	19.1	200	7.9	285	11.2	445	17.5
GSK22-490	490	19.3	207	8.1	283	11.1	450	17.7
GSK22-502	502	19.8	200	7.9	302	11.9	462	18.2
GSK22-505	505	19.9	210	8.3	295	11.6	465	18.3
GSK22-510	510	20.1	220	8.7	290	11.4	470	18.5
GSK22-525	525	20.7	225	8.9	300	11.8	485	19.1
GSK22-530	530	20.9	230	9.1	300	11.8	490	19.3
GSK22-540	540	21.3	230	9.1	310	12.2	500	19.7
GSK22-550	550	21.7	235	9.3	315	12.4	510	20.1
GSK22-560	560	22	245	9.6	315	12.4	520	20.5
GSK22-560 (190)	560	22	190	7.5	370	14.6	520	20.5
GSK22-575	575	22.6	250	9.8	325	12.8	535	21.1
GSK22-575 (180)	575	22.6	180	7.1	395	15.6	535	21.1
GSK22-580	580	22.8	180	7.1	400	15.7	540	21.3
GSK22-585	585	23	255	10	330	13	545	21.5
GSK22-595	595	23.4	260	10.2	335	13.2	555	21.9
GSK22-610	610	24	270	10.6	340	13.4	570	22.4
GSK22-630	630	24.8	275	10.8	355	14	590	23.2
GSK22-640	640	25.2	283	11.1	357	14.1	600	23.6
GSK22-650	650	25.6	285	11.2	365	14.4	610	24
GSK22-665	665	26.2	205	8.1	460	18.1	625	24.6
GSK22-668	668	26.3	298	11.7	370	14.6	628	24.7
GSK22-685	685	27	305	12	380	15	645	25.4
GSK22-690	690	27.2	300	11.8	390	15.4	650	25.6
GSK22-690 M8	690	27.2	310	12.2	380	15	650	25.6
GSK22-710	710	28	310	12.2	400	15.7	670	26.4
GSK22-725	725	28.5	290	11.4	435	17.1	685	27
GSK22-730	730	28.7	220	8.7	510	20.1	690	27.2
GSK22-730 (320)	730	28.7	320	12.6	410	16.1	690	27.2
GSK22-735	735	28.9	325	12.8	410	16.1	695	27.4
GSK22-750	750	29.5	330	13	420	16.5	710	28
GSK22-785	785	30.9	350	13.8	435	17.1	745	29.3
GSK22-800	800	31.5	362	14.3	438	17.2	760	29.9
GSK22-820	820	32.3	360	14.2	460	18.1	780	30.7
GSK22-830	830	32.7	377	14.8	453	17.8	790	31.1
GSK22-885	885	34.8	402	15.8	483	19	845	33.3
GSK22-900	900	35.4	412	16.2	488	19.2	860	33.9
GSK22-914	914	36	419	16.5	495	19.5	874	34.4
GSK22-940	940	37	430	16.9	510	20.1	900	35.4
GSK22-1030	1030	40.6	475	18.7	555	21.9	990	39
GSK22-1040	1040	40.9	485	19.1	555	21.9	1000	39.4
GSK22-1100	1100	43.3	500	19.7	600	23.6	1060	41.7
GSK22-1237	1237	48.7	500	19.7	737	29	1197	47.1

Force Range | 90 – 1200N (20 – 270 lb)

Extended length is the centre-centre length measured with standard 20mm end fittings. Using other end fittings may alter the overall length.

We can manufacture any size gas spring in 10×22 up to a maximum stroke of 500mm. Please specify force setting requirement when ordering.
