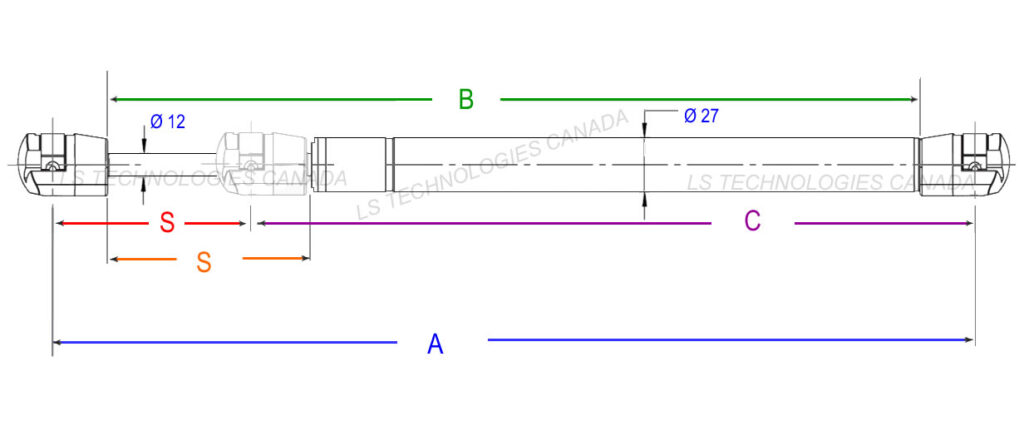

12.5/27 SERIES	Extended Length [A]		Stroke [S]		Compressed Length [C]		No Ends – Ext Length [B]
STOCK No.	mm	Inches	mm	Inches	mm	Inches	mm	inches
GSK27/10-620	620	24.4	270	10.6	350	13.8	580	22.8
GSK27/10-650	650	25.6	260	14.2	390	15.35	610	24
GSK27/10-730	730	28.7	200	7.9	530	20.9	690	27.2
GSK27-182	182	7.2	52	2	130	5.1	142	5.6
GSK27-305	305	12	115	4.5	190	7.5	265	10.4
GSK27-330	330	13	80	3.1	250	9.8	290	11.4
GSK27-390	390	15.4	155	6.1	235	9.3	350	13.8
GSK27-400	400	15.7	162	6.4	238	9.4	360	14.2
GSK27-430	430	16.9	177	7	253	10	390	15.4
GSK27-490	490	19.3	206	8.1	284	11.2	450	17.7
GSK27-500	500	19.7	200	7.9	300	11.8	460	18.1
GSK27-505	505	19.9	210	8.3	295	11.6	465	18.3
GSK27-525	525	20.7	220	8.7	305	12	485	19.1
GSK27-550	550	21.7	235	9.3	315	12.4	510	20.1
GSK27-585	585	23	255	10	330	13	545	21.5
GSK27-610	610	24	265	10.4	345	13.6	570	22.4
GSK27-650	650	25.6	285	11.2	365	14.4	610	24
GSK27-668	668	26.3	292	11.5	376	14.8	628	24.7
GSK27-688	688	27.1	306	12	382	15	648	25.5
GSK27-700	700	27.6	310	12.2	390	15.4	660	26
GSK27-730	730	28.7	320	12.6	410	16.1	690	27.2
GSK27-830	830	32.7	375	14.8	455	17.9	790	31.1
GSK27-900	900	35.4	410	16.1	490	19.3	860	33.9
GSK27-940	940	37	430	16.9	510	20.1	900	35.4
GSK27-1030	1030	40.6	475	18.7	555	21.9	990	39
GSK27-1104	1100	43.3	500	19.7	600	23.6	1060	41.7
GSK27-1104	1104	43.5	500	19.7	604	23.8	1064	41.9
GSK27-1237	1237	48.7	500	19.7	737	29	1197	47.1
GSK27-1300	1300	51.2	610	24	690	27.2	1260	49.6

Force Range | 100 – 1700N (20 – 380 lb)

Extended length is the centre-centre length measured with standard 20mm end fittings. Using other end fittings may alter the overall length.

We can manufacture any size gas spring in 12.5×27 up to a maximum stroke of 500mm. Please specify force requirement when ordering.
