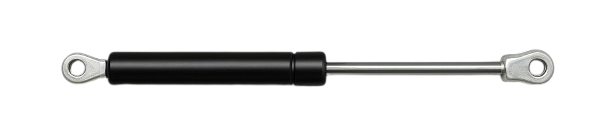

6×15 Carbon Steel Gas Spring

Our 6×15 series gas springs are great for applications with limited space requiring low output forces. Most common force settings are from 10 to 60 lbs.

Fixed Force – We set force to your specification at time of order.

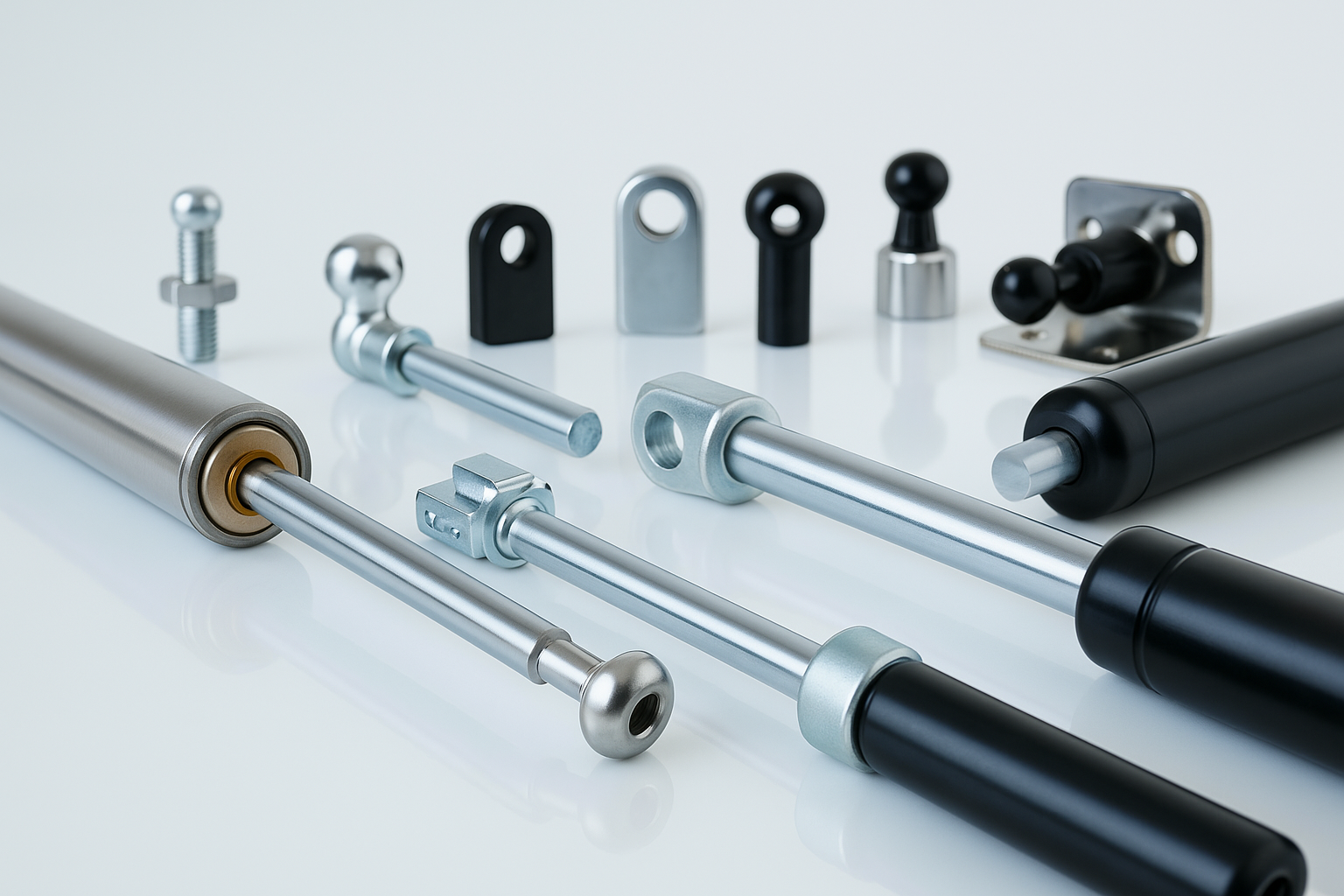

Optional end fittings available upon request

Force Range: 50 – 400N (10-90 LB)

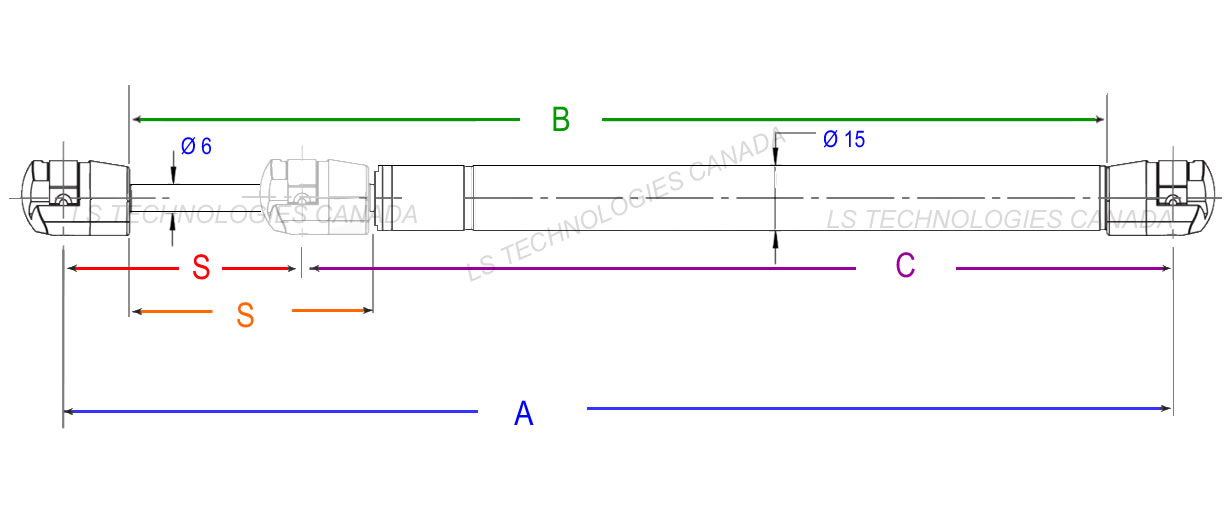

Specifications:
Force Range	50-400N
Extended Length A	165mm
Stroke S	48mm
Compressed Length C	117mm
Shoulder Length B	129mm
Thread Size	M6x10
Rod Diameter	6mm
Cylinder Diameter	15mm

Extended length is the centre-centre length measured with standard 18mm end fittings. A variety of end fittings are available. Certain end fittings will alter the overall length. We can manufacture any size gas spring in 6×15 up to a maximum stroke of 250mm.

Cross Reference Guide

Below is a list of brand-name part numbers that this product can replace

No references available.

Looking for something specific? If we don't carry it, we manufacture it. Contact us
